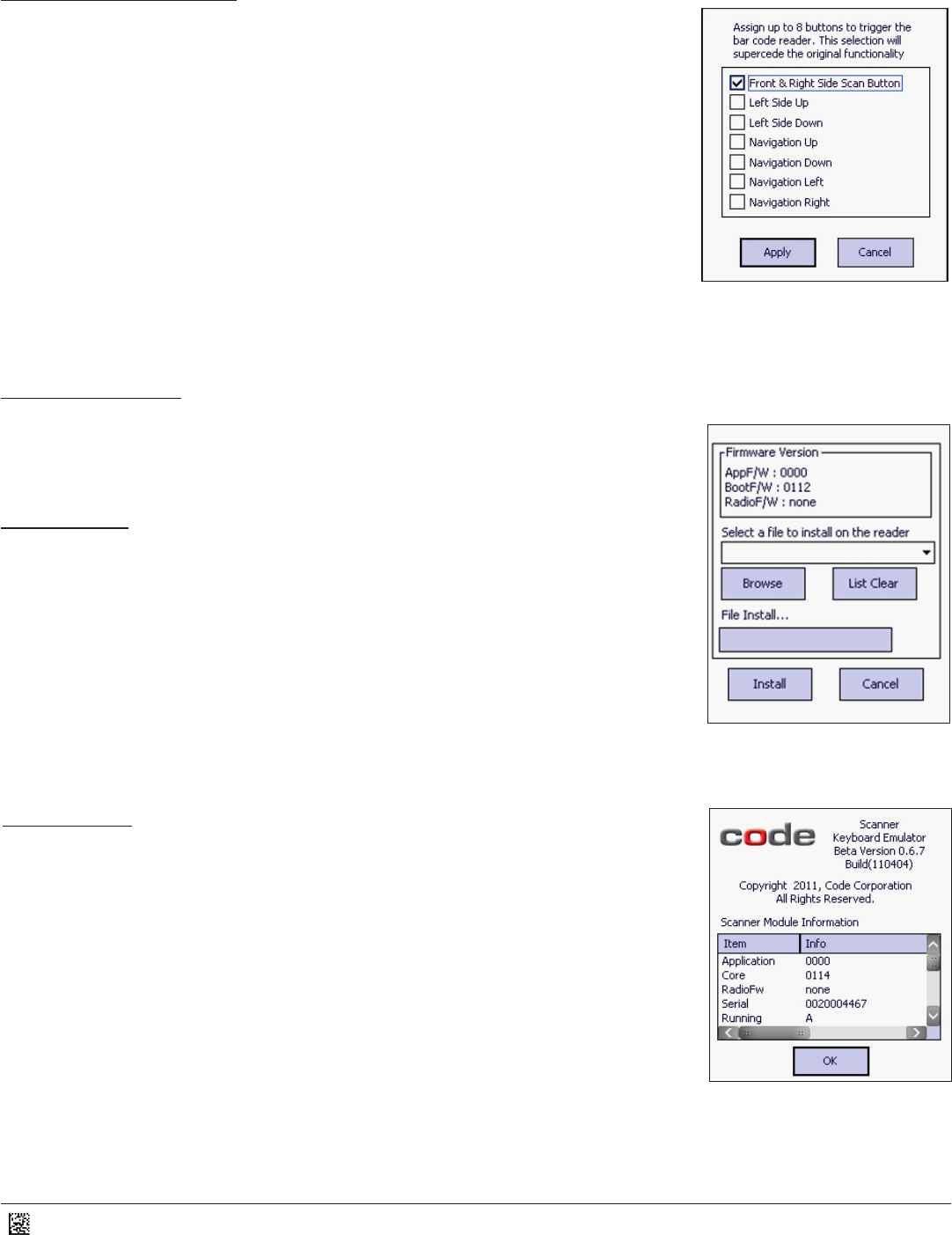

3.4 - Buon Sengs

Select/Unselect the desired buons to trigger the bar code reader on the CR4100 (Figure 24).

Opons are:

• Front & Right Side Scan Buon (default)

• Le Side Up

• Le Side Down

• Navigaon Up

• Navigaon Down

• Navigaon Le

• Navigaon Right

3.5 - File Install

This is an Advanced Opon. Installing an incorrect le could disable the bar code reader

in the CR4100 (Figure 25).

Firmware Version

AppF/W – Applicaon Firmware Number

BootF/W – Boot Firmware Number

RadioF/W – Radio Firmware Number. Select a le to install on the reader. Select a le by

browsing to the le’s locaon.

File Install – Shows the progress of the le install process.

Install – Tap this buon to install the le.

3.6 - About

Provides Informaon about the hardware and soware installed in the CR4100 (Figure 26).

Figure 24

Figure 25

Figure 26
