C006244_01_CR4100_QuickStart_Guide

1. Click the Windows START icon on the upper le poron of the screen on the

CR4100 (Figre 14).

2. Click on Cortex Mobile (Figure 15), you may need to scroll down through the

icons to nd Cortex Mobile. Cortex Mobile is the bar code reader conguraon

tool.

3. You will see a pop-up which states “Inializing Scanner” (Figure 16).

4. Aer the pop-up disappears, you will see a Data Matrix icon in the lower right

hand corner of the screen (Figure 17).

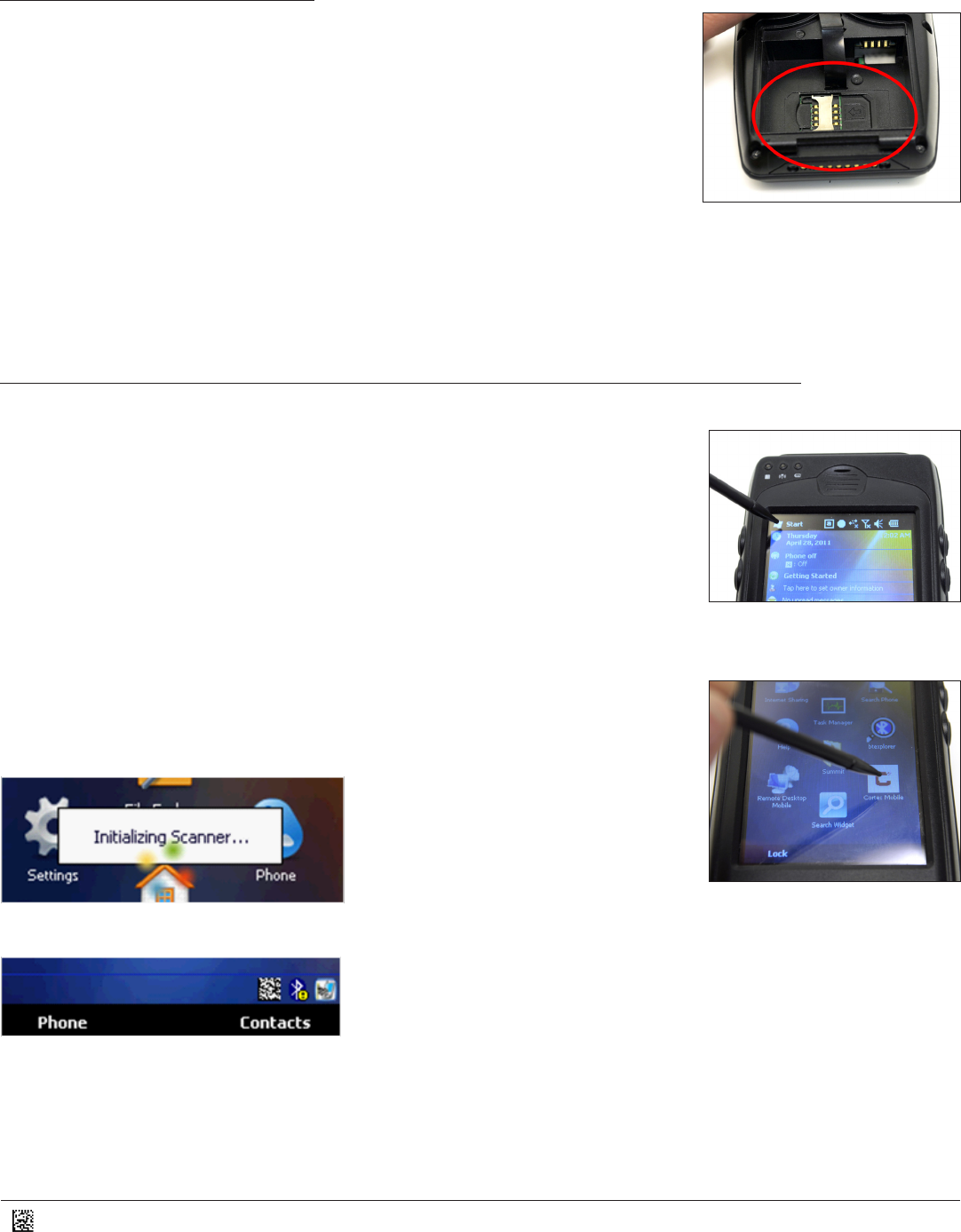

3.0 - Conguring the CR4100 Bar Code Reader using Cortex™ Mobile

2.12 - Inserng a SIM Card

1. Follow the instrucons for Removing the Baery in Secon 2.1 of this QuickStart

Guide.

2. The SIM card socket is located in the baery compartment (Figure 13).

3. Insert the SIM card into the socket as shown in the diagram on the right of the

socket.

4. Follow the instrucons for Inserng the Baery in Secon 2.0 of this QuickStart

Guide.

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17
